TESA Inside Micrometer 100–125mm – Swiss Made

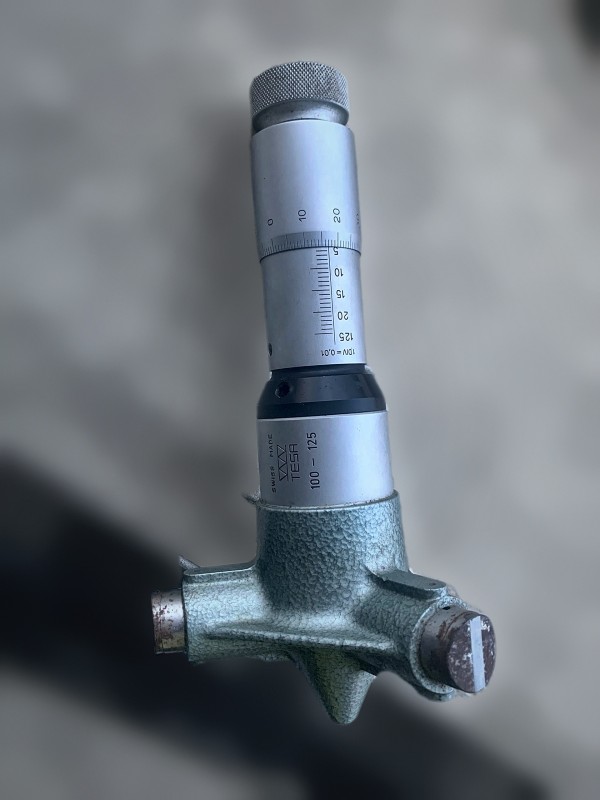

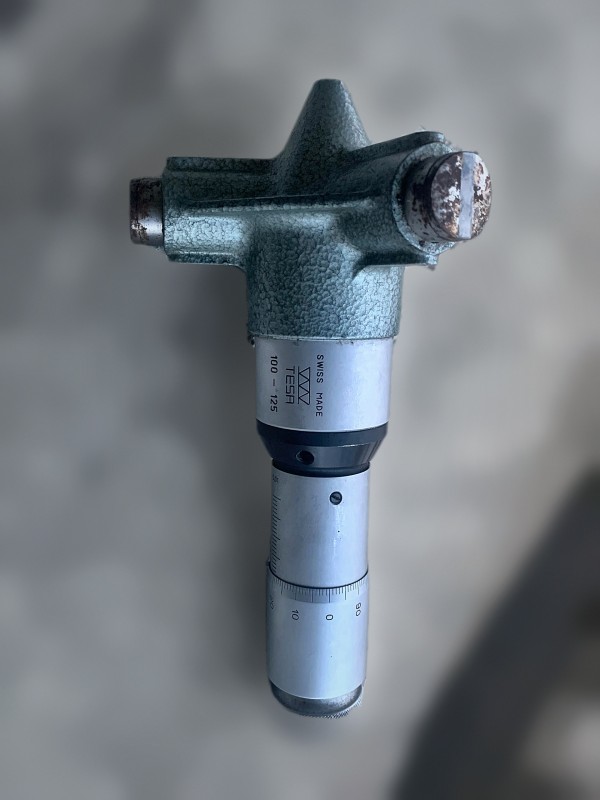

TESA Imicro Internal Micrometer 100–125 mm (Part No. 00812601) – Swiss-Made 3-Point Bore Gauge

The TESA Imicro Internal Micrometer 100–125 mm (TESA Part No. 00812601) is a Swiss-made precision instrument for accurate measurement of internal diameters, bores, and cylinders. It uses TESA's Imicro measuring system, which combines a threaded cone with three measuring arms. The instrument is self-centring and self-aligning in the bore, so readings are consistent and repeatable. It has a 0.01 mm graduation, an error limit of 0.006 mm, and carbide-tipped measuring faces, and it conforms to DIN 863-4, making it a dependable choice for machining, quality control, and maintenance work. Each unit is delivered in a protective case with a manufacturer measuring report. Lystus Technical is the trusted supplier, distributor, and seller of the TESA Imicro Internal Micrometer, ensuring quality and dependable support.

Key Features

• Three-point contact system for self-centring, self-aligning bore measurement
• Threaded cone and three measuring arms (TESA's Imicro measuring system)
• Carbide-tipped measuring faces for wear resistance and long service life
• 0.01 mm graduation with a 0.006 mm error limit
• Ratchet for consistent measuring force
• Measuring depth can be extended with optional extensions
• Conforms to DIN 863-4
• Supplied with a manufacturer measuring report
• Swiss made

Technical Specifications

• Brand: TESA
• Model: Imicro Three-Point Internal Micrometer
• Part Number: 00812601
• EAN: 7630041108248
• Measuring Range: 100 – 125 mm
• Graduation: 0.01 mm
• Error Limit: 0.006 mm
• Type: Analogue
• Measuring Faces: Carbide-tipped
• Standard Measuring Depth: 81 mm
• Standard: DIN 863-4
• Setting Ring: Not included (available separately)
• Extensions: Not included (available separately)
• Supplied In: Case with manufacturer measuring report
• Country of Origin: Switzerland

Applications

• Internal diameter and bore measurement
• Cylinder and hole inspection
• Machining and manufacturing quality control
• Engine, pump, and hydraulic component maintenance
• Workshop and toolroom inspection
