Depth Micrometer 0-25mm Series 128
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
₦85,000.00
/set
Refund:
Share:
Top Selling Products
-
10Pcs CNMG120408 Turning Carbide Insert
₦19,477.00 -
DNMG150608 External Metal Cutting Insert
₦34,101.00 -
CNMG160608 Tungsten Carbide Cutting Insert
₦75,000.00

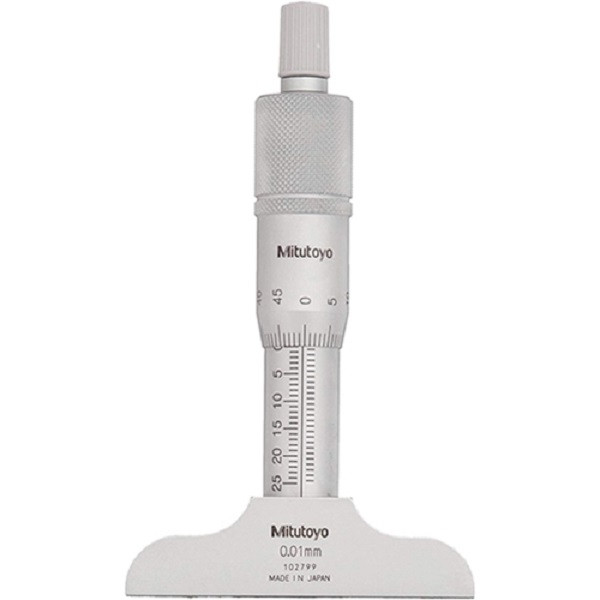

Depth Micrometer 0-25mm series 128
The Mitutoyo Depth Micrometer Series 128 offers a4mm measuring rod with measuring rod clamp and a ratchet stop for constant force.
This vernier depth micrometer features Ø4mm measuring rod with measuring rod clamp. It has a ratchet stop for constant force
Range = 0-25mm
Accuracy = +/- 3µm for micrometer head feed
Graduation = 0.01mm
Base size = 63.5 x 16mm or 101.6 x 16mm, select when ordering
Flatness of reference face = 1.3µm for 63.5mm base, 2µm for 101.6mm base
Flatness of measuring face rod = 0.3µm
Parallelism = (4+L/50)µm L=Max measuring length (mm)
Rod diameter = 4mm
Item weight: 7.1 ounce
Material: Carbide
Brand: Mitutoyo

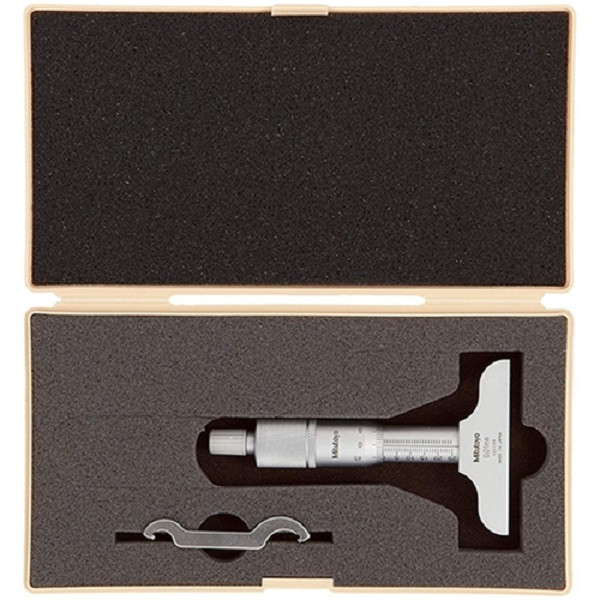

Case = includes fitted plastic case.
Mitutoyo Part # = 128-101, 128-102
ABOUT THIS ITEM
- Measurement range of 0 to 25mm and resolution of 0.01mm
- Vernier Scale for precise measurement in fine units
- Includes 4mm diameter measuring rod, carbide tipped in certain models
- Ratchet stop and measuring rodclampfor precise measurements
- Satin Chrome finish on the thimble for readability
PRODUCT SPECIFICATIONS
EAN: 4946368016245
ITEM VOLUME: 0.001 CUBIC_METERS
ITEM WEIGHT: 7.1 OUNCES
MAXIMUM MEASUREMENT: 0-25MM
MEASUREMENT ACCURACY: +/- 0.003MM
MODEL: 128-101
SERIAL NUMBER: 100874
