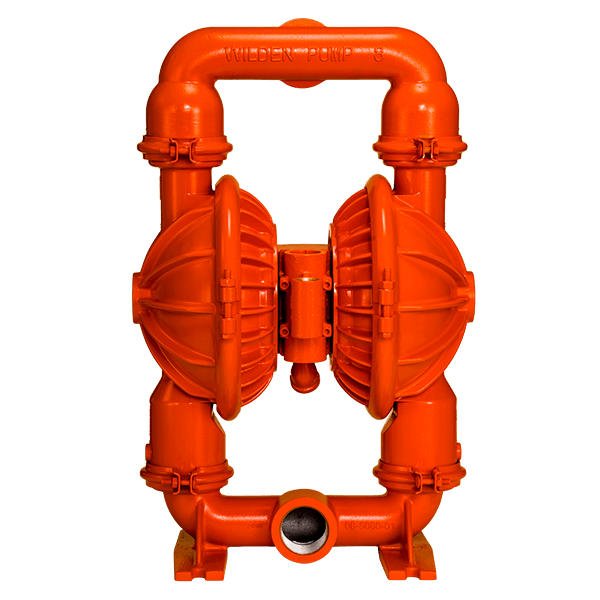

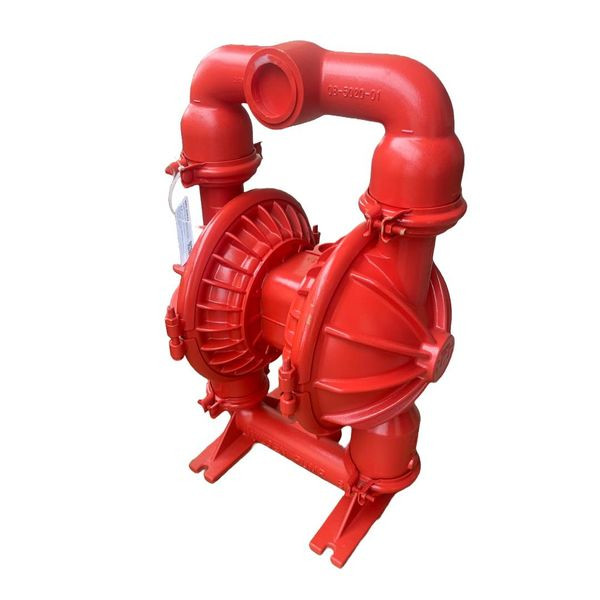

Wilden T8 51 mm (2'') Turbo-Flo Clamped Metal AODD Diaphragm Pump

Wilden T8 51 mm (2'') Turbo-Flo Clamped Metal AODD Diaphragm Pump

The Wilden T8 51 mm (2'') Turbo-Flo Clamped Metal AODD Diaphragm Pump is a high-performance, industrial-grade pump designed for efficient fluid transfer in demanding environments. With a robust Turbo-Flo air distribution system and advanced construction, this pump ensures durability, reliability, and low maintenance. It’s ideal for use in various industries including chemical processing, wastewater treatment, and industrial manufacturing. Lystus Technical is the authorized distributor, supplier, and seller of Wilden pumps in Nigeria, ensuring you get genuine products with full support.

Product Description

The Wilden T8 AODD Diaphragm Pump is equipped with a Turbo-Flo air distribution system, which eliminates mechanical components such as trip rods and springs, minimizing the risk of mechanical failure and simplifying maintenance. The pump has an air max pressure of 8.5 BAR (125 psig) and is suitable for use with air only. It offers an impressive maximum flow rate of 617 liters per minute (163 GPM), making it ideal for high-demand industrial applications.

For added safety, the pump features a design that prevents material leakage through the air exhaust in the event of diaphragm failure. Additionally, operators must disconnect the air supply and relieve pressure on both the air and fluid sides before performing maintenance, ensuring safe handling.

Key Features

• Turbo-Flo Air Distribution System: Operates without mechanical parts like trip rods, bearings, or springs, improving reliability and reducing maintenance.
• High Flow Rate: Delivers a maximum flow rate of 617 liters per minute (163 GPM) for efficient fluid transfer.
• High Air Pressure Capacity: Supports a maximum air pressure of 8.5 BAR (125 psig), ideal for various industrial applications.
• Safety-First Design: Prevents fluid discharge through the exhaust if the diaphragm material fails.
• Durable Clamped Design: Lightweight and portable, the clamped construction ensures easy maintenance and robust performance.
• Multi-Material Compatibility: Capable of handling a wide range of fluids, including chemicals and waste materials.

Technical Specifications

• Model: T8 Original Metal
• Item Number: 08-1103
• Code: 37, Turbo-Flo, 08-9100-12
• Serial Number (S/N): PSG00042197
• Manufacture Date: June 2024
• Inlet/Outlet Size: 51 mm (2 inches)
• Maximum Flow Rate: 617 LPM (163 GPM)
• Maximum Air Pressure: 8.5 BAR (125 psig)
• Max Air Pressure Ratings:
  • H800 Max: 5.9 BAR (85 psig)
  • P200/PTFE Max: 5.2 BAR (75 psig)
  • UL Max: 3.4 BAR (50 psig)
• Weight: Approximately 22.7 kg (50 lbs)
• Dimensions:
  • Height: 530 mm (21 inches)
  • Length: 460 mm (18 inches)
  • Width: 410 mm (16 inches)

Safety Information

If the diaphragm material fails, the fluid being pumped may be expelled through the air exhaust. Always disconnect the air supply and properly alleviate pressure from both the air supply and fluid side of the pump before performing any maintenance.

Applications

This model is widely used in industries requiring reliable and durable fluid transfer, such as:

• Chemical Processing
• Wastewater Treatment
• Industrial Manufacturing
• Paints and Coatings

Authorized Distributor Information

Lystus Technical is the official distributor, supplier, and seller of Wilden Pumps in Nigeria. For more information or to make a purchase, visit our website or contact us directly.
