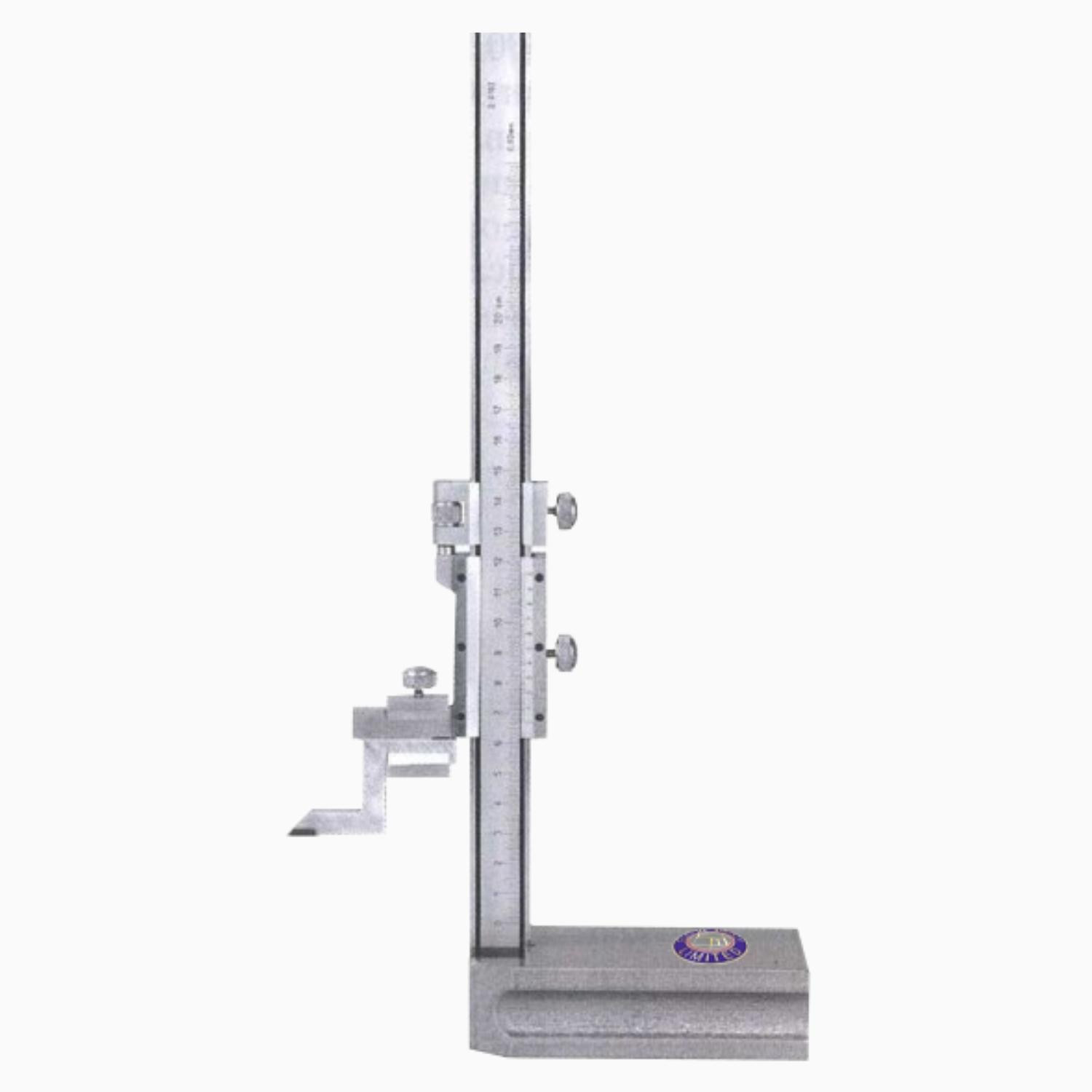

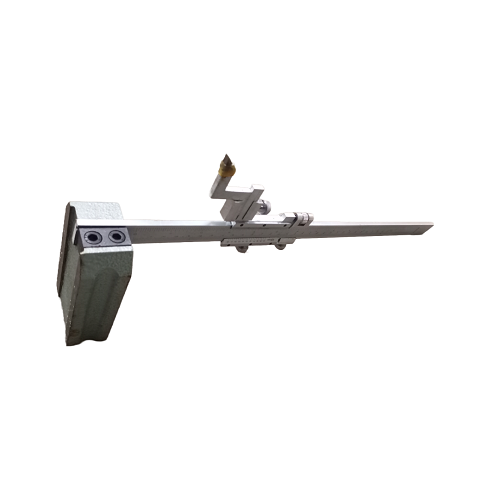

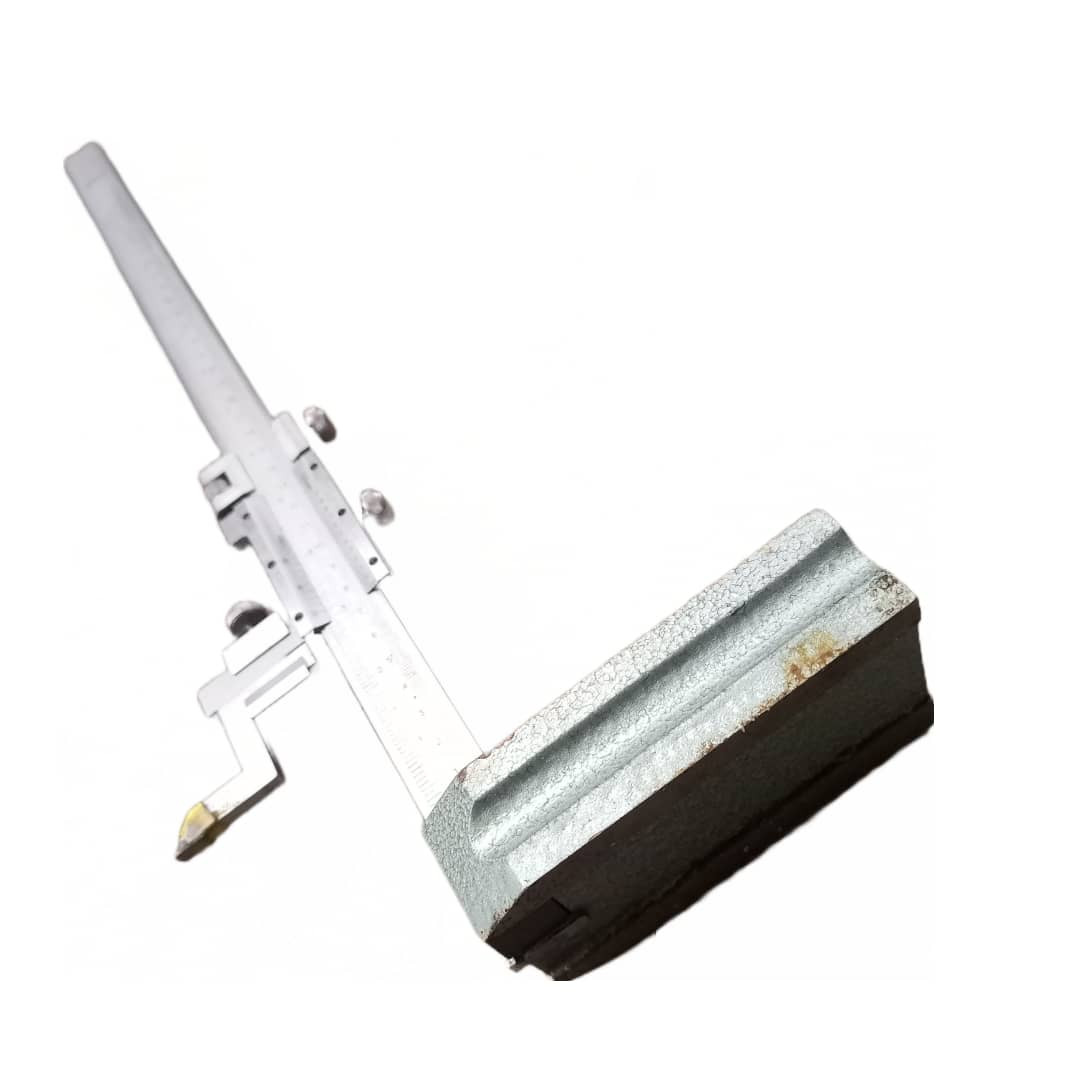

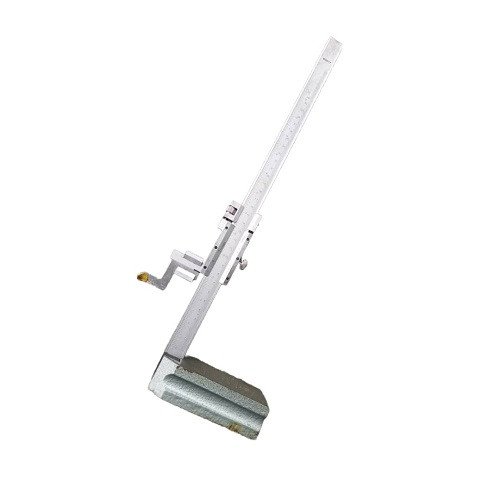

Vernier Height Gauge For Height Measurement 0-300mm

Mighty Height Vernier Calipers 0-300mm Stainless Steel Vernier Height Gauge with Stand Measure Ruler Tools


A height gauge is a measuring device used for determining the height of objects, and for marking of items to be worked on.

These measuring tools are used in metalworking or metrology to either set or measure vertical distances; the pointer is sharpened to allow it to act as a scriber and assist in marking out work pieces.

Features:
1.It can be used to measure the height.
2. Stable & reliable performance, accurate readout, no over-speed error.
3.Top grade exquisite workmanship.
4.Hardened, steel bar for long life.
5. Rounded nose scriber cuts clean, lines with smoothness and less pressure.
6. Lock to hold the slide in position.
7. Fine adjustment thumb roll for measurements.
8.Hardened, ground and lapped base with finger grooves provides ease of movement.

Specification:

Display Mode: Reading

Measurement Range: 0-300mm

Accuracy: 0.02mm

Material: Stainless Steel

Color: Silver

Product Size: As pictures shown.(approx)

Height: 41cm(16.14in)

Base size: 11x6.2x3.3cm(4.33x2.44x1.30in)

Package Size: approx. 49x19x10cm(19.29x7.48x3.94in)

Quantity: 1 set
