SCLCR 1616 H09 (95°) Toolholder for Screw-on Inserts

SCLCR 1616 H09 (95°) Toolholder for Screw-on Inserts

The SCLCR 1616 H09 (95°) is a high-precision right-hand toolholder designed for screw-on inserts, offering exceptional rigidity and cutting accuracy in turning operations. Its 95° tool angle ensures efficient chip control and smooth machining, while the 16mm x 16mm shank provides stability for demanding applications. Compatible with CCMT09T304 inserts, it is ideal for machining steel, stainless steel, and cast iron in both CNC and manual lathes.

Key Features:

• High-Precision Machining: Ensures stability and accuracy with screw-on insert clamping.

• Right-Hand Tool: Optimized for standard turning operations.

• 95° Tool Angle: Enhances cutting efficiency and chip control.

• 16mm x 16mm Shank: Delivers rigidity for heavy-duty machining.

• CCMT09T304 Insert Compatibility: Supports P (steel), M (stainless), and K (cast iron) materials.

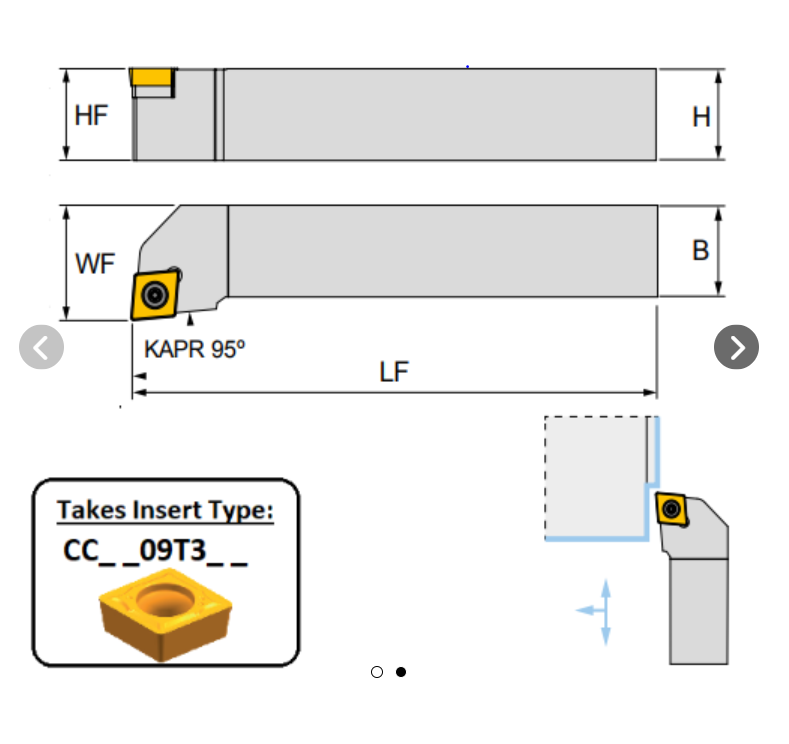

Technical Specifications:

• Shank Dimensions: 16mm (W) x 16mm (H)

• Functional Length: 100mm

• Insert Type: CCMT09T304 (IC: 9.525mm)

• Clamping Type: Screw-on (S)

• Tool Angle: 95°

• Wrench Size: T15

• Screw Size: M4x8

Applications:

• General Turning: Suitable for steel (P), stainless steel (M), and cast iron (K).

• CNC & Manual Lathes: Compatible with standard setups for precise machining.

Engineered for durability and performance in demanding machining tasks.
