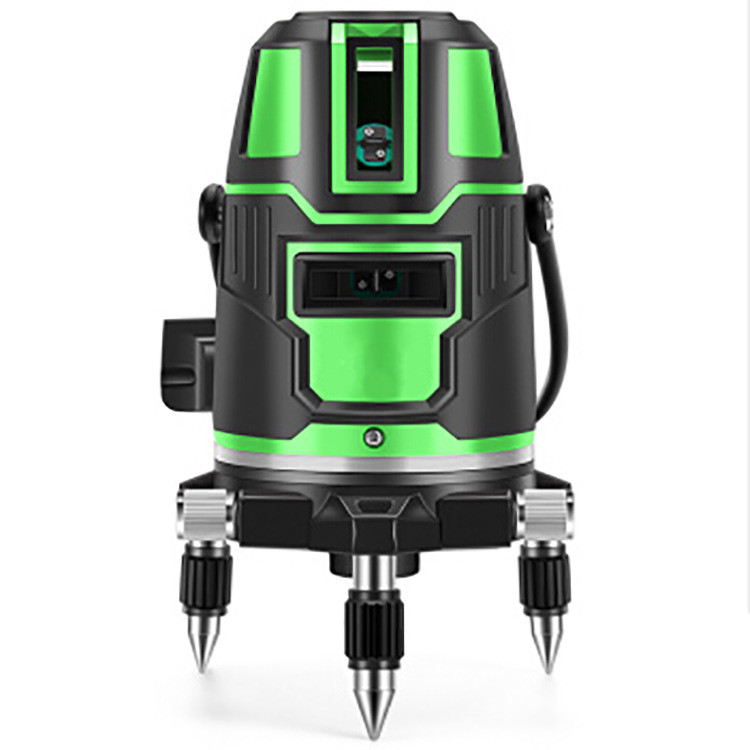

Green Laser Level 5 Lines 6 Points 360 Degrees Rotary Auto Cross Line

Green Laser Level 5 Lines 6 Points 360 Degrees Rotary Auto Cross Line

A green laser level tool is a construction tool that uses a laser to detect the vertical position of the object. It’s used for measuring distances and heights, as well as for aligning objects on different levels. The green light laser level is basically a handheld device with a built-in laser that emits light in the infrared range. Green line lasers come in a variety of models, including handheld and tripod-mounted lasers.

2/3/5 Cross Lines Laser Level Self-Leveling 360 Rotatable Indoor Outdoor Green Radius Alternating Direct Horizontal Vertical Measuring Instruments

Features:

1. This professional self-leveling laser level features 2/3/5 lines for a broad array of alignment and precise measurement.
2. Automatic self leveling mechanism. Audio warning when beyond auto leveling range.

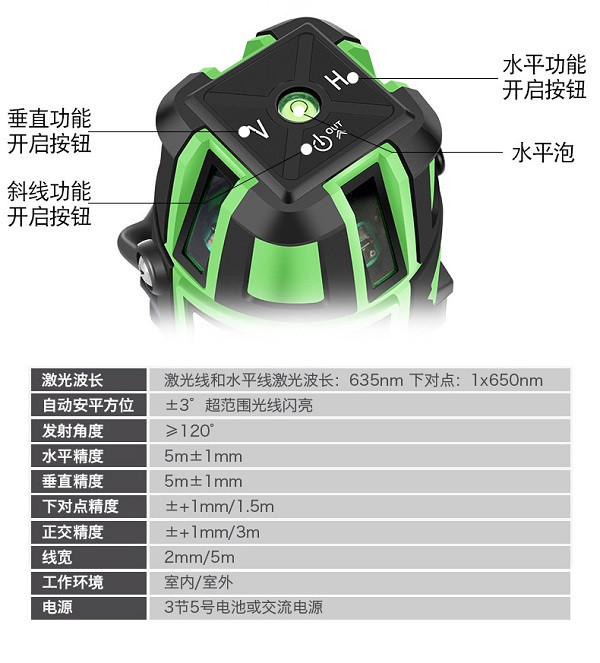

3. With fine tuning knob, 360 degree rotatable base, quickly identify the target.

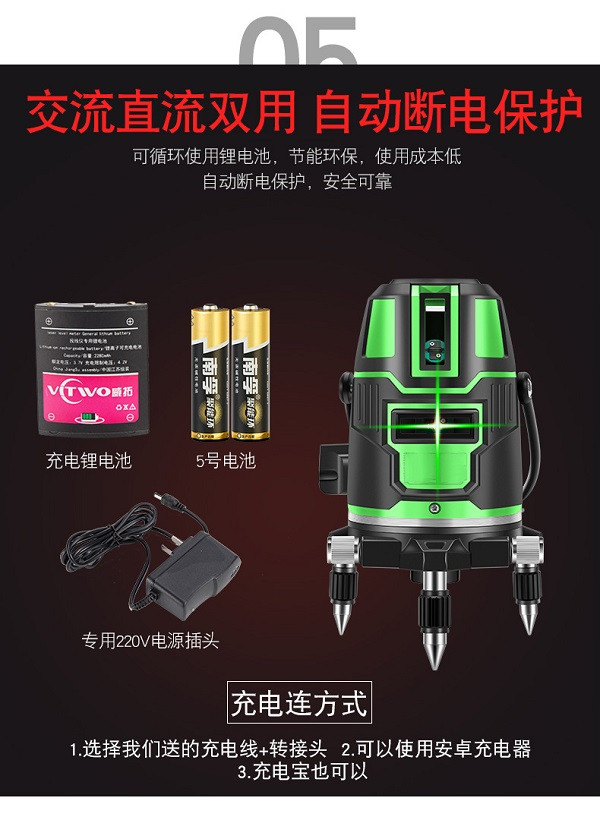

4. Alternating current or direct current dual use, high efficiency and convenience.
5. The button is waterproof, wear-resisting and feel exquisite, easy to operate.
6. The thickened metal base provides stable support and it is shockproof, shatter-proof.
7. Easy to carry with the plastic case and carrying strap, providing quick and convenient mobility and storage.
8. Wide applications for auxiliary tiles fixing, wall decoration, floor tiles fixing, stair handrails and more.

Specifications:

Line: 2 lines, 3 lines, 5 lines
Material: Aluminum Alloy Chassis + Engineering Plastics
Product Size: Approx. 21 x 19.5 x 17 cm / 8.27 x 7.68 x 6.69 inch
Gross Weight: Approx. 1.5 kg
Laser Diode: 532 nm green light
Laser Wavelength: vertical and horizontal: 5 x 635nm, down plummet: 1 x 650nm
Self-leveling: +/- 3 degree
Emission Angle: >=120 degree
Horizontal Accuracy: +-1mm at 5m
Vertical Accuracy: +-1mm at 5m
Accuracy of Lower Alignment: +-1mm at 1.5m
Orthogonal Accuracy: +-1mm at 3m
Line Width: 2 mm at 5 m
Working Environment: indoor/outdoor
Power Supply: AC 110-240V
Plug Specification: US/EU/AU/UK
Oblique Line Function: yes
Operating Temperature: 0-40 degree Celsius
Operating Time: Approx. 8 Hours
Wall Sticking Distance: 7 mm
Working Distance: 20 m
Protection Grade: IP54
Color: Green+Black

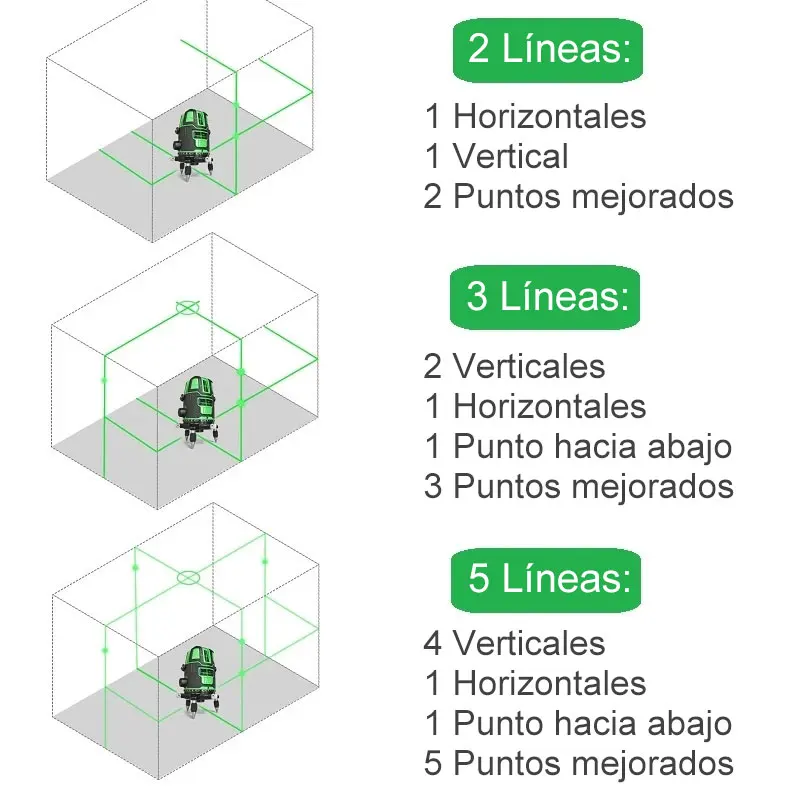

2 Lines Laser Level:

2 Lines 2 Points (1 Vertical, 1 Horizontal, 2 Enhanced Points)

3 Lines Laser Level:

3 Lines 4 Points (2 Vertical, 1 Horizontal, 1 Down Point, 3 Enhanced Points)

5 Lines Laser Level:

5 Lines 6 Points (4 Vertical, 1 Horizontal, 1 Down Point, 5 Enhanced Points)

Diagonal Function:

An adapter needs to be configured. Hold down the OUT button for 5 seconds to lock the alarm. With the adapter, the diagonal open.

Attention:

1. Because of the different Standard of every country, please message the model of plug specification when purchase (UK, AU, US or EU)! Thank you!
2. If plug in stock doesn't meet you demand, a adapter will be provided freely.

Package Included:

1x laser level
1x lithium battery
1x charger
1x anti-fall tool bag
1x user manual

Application：

Auxiliary tiles fixing, wall decoration, floor tiles fixing, stair handrails,furred ceiling,floor tile,plastering.

Product description:
Vertical and Horizontal Precision: ±1mm /5m
Right Angle Precision:±1mm /5m
Down To Point Precision:±1mm /1.5m
Orthogonal Precision: ±1mm /3meters
Laser Rays Width:2mm/5m
Working distance: 30
Automatic Leveling Range:±3°
Projection Angle: ≥120°
Rotation Degree: 360°
Scope of application: 50m
5 Line:Four vertical lines, one horizontal line, five reinforcement points and one lead hammer point.

How to use:

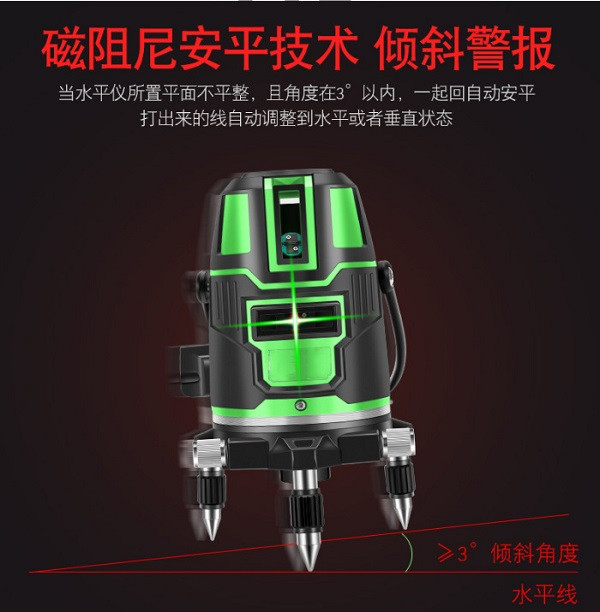

1.Set the instrument on the tripod or a stable surface, adjust the instrument. If the instrument is too tilted, out of range (3 degrees), the laser tube will automatically turn off (or if audible alarm)
2.Switch knob clockwise to open the instrument, the instrument top green indicator light, while emitting a laser beam
3.Turn the instrument, the laser beam toward goals
4.Gently adjust knob, find work orientation
5.When work is over, turn the switch knob counterclockwise, turn off the instrument

Features :

- Rechargeable batteries that last 3-4 hours.
- High brightness green, indoor and outdoor clearly.
- ±3°Automatic self leveling function. Sound warning when beyond auto leveling range.

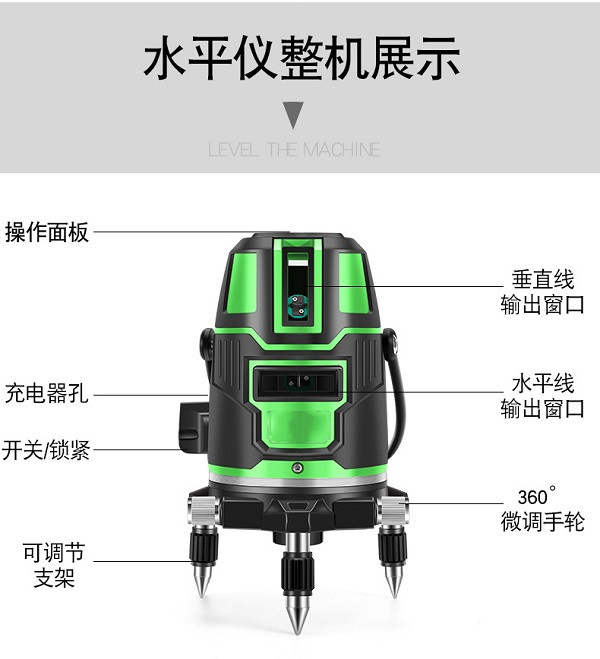

- 360° rotating base with fine tuning knob, quickly identify the target.Thickened metal base provides stable and it is shockproof.
- High quality and long service life.
- With tripods, diagonal lines can be struck.
- Precise measurement and more convenient to use.
- Waterproof,dustproof and high precision.
- With light point designed outdoor environments, provide convenience for the construction.
- With aluminium alloy tripod,can adjusta the height,more convenient to use.
- Slash can be played，more efficient.

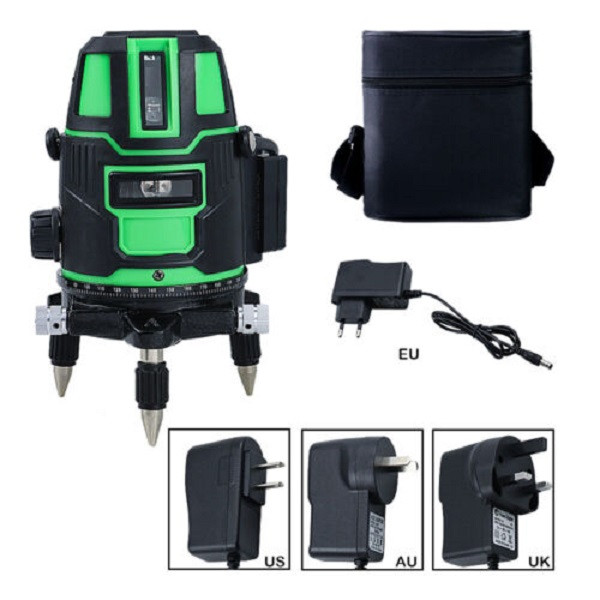

Package Included:
1x Main machine
1x
1x Base
1x Protective
1x Power adapter
1x Thickened aluminum box

https://youtu.be/UaRXSJZt5X0
