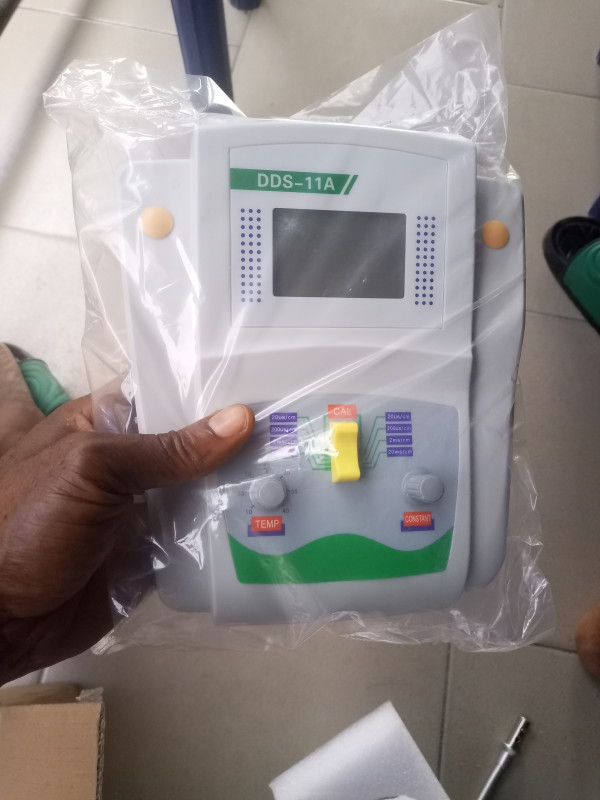

DDS-11A Desktop Precision Conductivity Meter

DDS-11A Desktop Precision Conductivity Meter

Brief Description

The DDS-11A Desktop Precision Conductivity Meter is a sophisticated device designed to measure the conductivity of aqueous solutions with high precision. Ideal for laboratory use, research, and industrial applications, it ensures accurate and reliable measurements. The instrument features a user-friendly interface, robust construction, and is capable of performing complex analytical tasks with ease.

Technical Parameters and Specifications

• Measurement Range:

  • Conductivity: 0.00 µS/cm to 199.9 mS/cm
  • Temperature: 0°C to 100°C

• Resolution:

  • Conductivity: 0.01 µS/cm
  • Temperature: 0.1°C

• Accuracy:

  • Conductivity: ±1.0% of the full-scale reading
  • Temperature: ±0.5°C

• Calibration:

  • 1-point or 2-point calibration

• Temperature Compensation:

  • Automatic or manual, 0°C to 50°C

• Cell Constant:

  • Adjustable, typically K=0.1, 1.0, or 10.0

• Display:

  • Large LCD with backlight for clear readings

• Power Supply:

  • AC adapter, 220V/50Hz

• Dimensions:

  • 220 mm (width) x 160 mm (depth) x 70 mm (height)

• Weight:

  • Approximately 1 kg

Features

1. High Accuracy: Delivers precise conductivity measurements with minimal error.
2. Automatic Temperature Compensation: Ensures accurate readings across varying sample temperatures.
3. User-Friendly Interface: Simplifies operation with an intuitive design and easy-to-read LCD.
4. Versatile Calibration Options: Supports both single-point and multi-point calibration to enhance measurement accuracy.
5. Adjustable Cell Constant: Customizable based on the specific requirements of the test sample.
6. Robust and Durable Design: Built to withstand regular use in diverse environments, from laboratories to industrial settings.
7. Portable and Lightweight: Convenient to transport and set up in different locations.
8. Comprehensive Display: Simultaneously shows conductivity and temperature for efficient monitoring.

This comprehensive and versatile meter is an essential tool for accurate conductivity measurements in various applications, including water quality testing, environmental monitoring, and chemical analysis.
