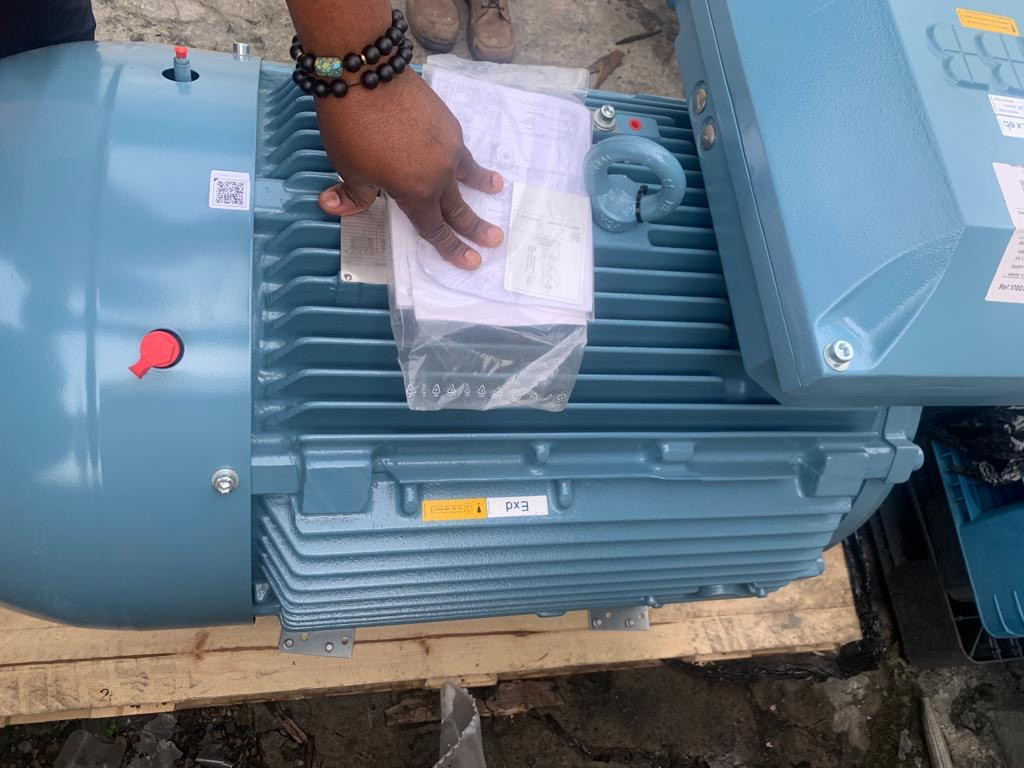

ABB M3KP 315SMC 2 Flameproof IE2 3-Phase Squirrel Cage Motor

Product ID: 3GKP311230-ADG

Description

Introducing the ABB M3KP 315SMC 2—a high-performance, flameproof 3-phase squirrel cage motor engineered for hazardous and explosive environments. Designed and manufactured in Finland, this robust motor meets strict safety and efficiency standards, making it ideal for demanding industrial applications. With its superior efficiency (up to 95.5% at full load) and reliable performance, the M3KP 315SMC 2 is perfectly suited for use in oil and gas, chemical processing, mining, and other sectors where both safety and durability are paramount.

Key Features

• Flameproof Design: Built to Exde standards for safe operation in explosive atmospheres.
• High Efficiency: IE2 efficiency rating with full load efficiency reaching up to 95.5%.
• Robust Performance: Delivers a rated output of 160 kW with a high torque of 512 N·m.
• Versatile Voltage Options: Available in 690 V, 400 V, and 415 V variants to meet diverse system requirements.
• Continuous Duty Operation: Rated for S1 duty, ensuring reliable continuous performance.
• Built for Harsh Environments:
  • Ambient temperature limit of 40 °C
  • Suitable for altitudes up to 1000 m
  • Equipped with durable 6316/C3 bearings
• High-Quality Construction: Manufactured in Finland and designed for long-term industrial use.
• Compliance & Safety: IP55 protection rating and flameproof construction ensure safe operation in critical areas.

Technical Specifications

Electrical Data (50 Hz Variants)

• Voltage & Power Options:
  • 690 V – 160 kW
  • 400 V – 160 kW
  • 415 V – 160 kW
• Speed: Approximately 2981 r/min (with one variant at 2982 r/min)
• Current Ratings:
  • 690 V: 157 A
  • 400 V: 271 A
  • 415 V: 261 A
• Power Factor: 0.890 for all variants
• Efficiency:
  • Full Load (100%): Up to 95.50%
  • Partial Load (75%): 95.2%
  • Partial Load (50%): 94.2%
• Torque: 512 N·m
• Connection Temperature Class: T4 D

Environmental & Mechanical Data

• Ambient Temperature: Up to 40 °C
• Altitude: Up to 1000 m
• Bearing Type: 6316/C3
• Gas Group: IIB
• Country of Origin: Finland
• Customs Tariff Number: 85015381

Additional Details

• Gross Weight: 1065 kg
• Product Net Weight: 1045 kg
• IC Class: IC411
• IE Class: IE2
• IM Class: IMB3 / IM1001
• IP Class: IP55
• Insulation Class: ICLF
• Number of Poles: 2
• Type of Duty: S1 (Continuous Duty)
• Voltage Code: D

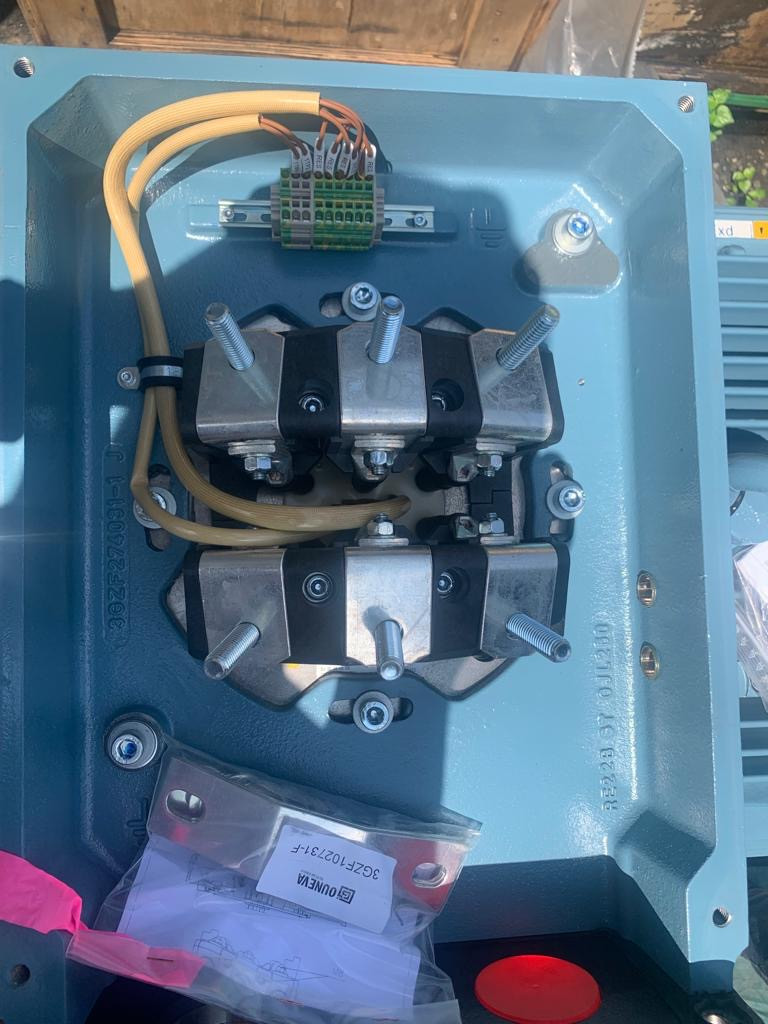

• Terminator Box Location: Top
• Two Speed Motor: No
• Minimum Order Quantity: 1 piece
• Packaging: 1 pallet (lift)
• WEEE Category: 4 – Large Equipment (Any External Dimension More Than 50 cm)

Application

The ABB M3KP 315SMC 2 motor is specifically designed for industrial applications where safety in explosive atmospheres is critical. Typical applications include:

• Oil & Gas Facilities: Reliable operation in hazardous areas.
• Chemical Processing Plants: Safe and efficient performance.
• Petrochemical Refineries: Flameproof design ensures secure operation.
• Mining Operations: Robust construction withstands demanding conditions.
• Other Industrial Environments: Any setting that requires a high-performance, flameproof motor.
