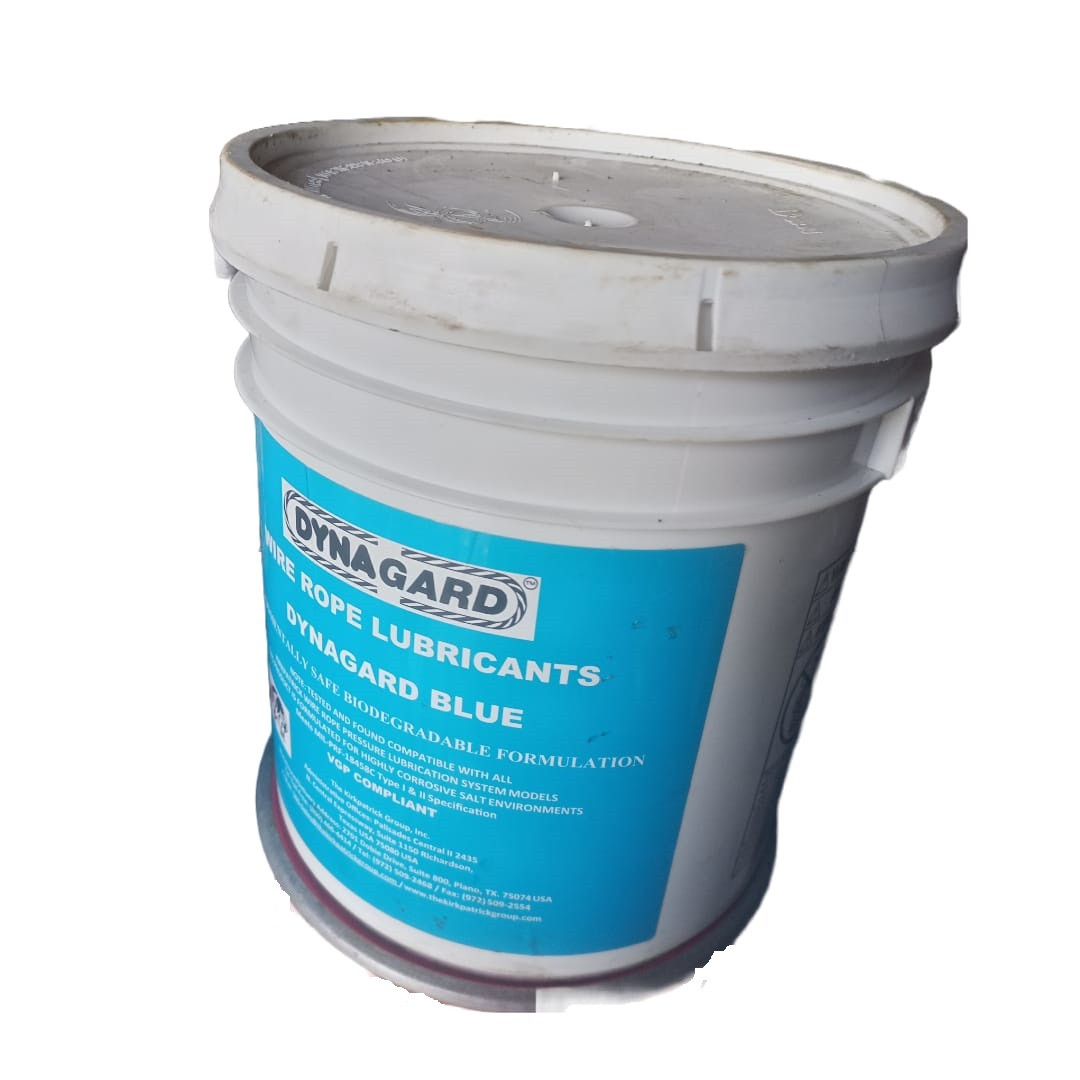

Dynagard Wire Rope Lubricants

Altools services presents to you,   Environmentally Friendly Wire Rope Lubricant, Dynagard Blue. It's an extreme pressure unleaded environmental wire rope lubricant blended for excellent resistance to softening under severe working conditions, water resistance, and it’s compatibility with all Kirkpatrick Wire Rope Lubrication Systems in addition to manual hand application.

Its slickness and viscosity allow it to stay alive with the wire rope as the strands move during load bearing operations.

This attribute also allows it to continuously redistribute itself to cover any internal strand areas that may have been missed during the initial lubrication process.

An unleaded extreme pressure additive provides exceptional protection against wear and shock loads, while additional additives enhance resistance to water wash-off, protection against fling off at high wire rope travel speeds, and long service in high temperature environments.

Dynagard Blue has outstanding structural and chemical stability. It won’t corrode steel and copper bearing alloys and is compatible with conventional seal materials.

Aquatic toxicity tests on sensitive marine organisms performed by independent testing laboratories have shown it to have possibly the best LC-50 value of any wire rope lubricant marketed in the world.

Copy of the test data is available upon request.

• National Stock Number:
• MIL-PRF-18458C (Type I & Type II): 9150-01-520-8116
  Meets or surpasses requirements: Pass
• LC50 Bio-Aquatic Rating, EPA/600/4-90/027: (Over 25,000 ppm)
  Test duration: 48 Hour
  Test specimen used: Mysidopsis Bahia
• Viscosity: NLGI Grade 2
• Color: Blue
• Texture: Smooth/Creamy
• Soap Type: Lithium 12
  Hydroxystearate
• Mineral Oil %: 50% Nominal
• Oil Separation % (Fed 791-321.1): 1.94%
• Penetration: mm, (ASTM D217): 305
• Viscosity, cST at 40 degrees Centigrade: 320
• Viscosity, cST at 100 degrees Centigrade: 21-23
• Dropping Point, C(F): 177 C (350 F)
• Low Temperature Flexibility (Section 4.4.4, No cracks @ 6 Degrees C): Pass
• Rust Test, ASTM D-1743: Pass
• Salt Fog Corrosion Resistance ASTM B117: 1,000 hr./Pass
• Salt Spray, Fed. Standard 791, TM 4001 (10 Days): Pass
• Accelerated Weathering (ASTM G152, 153): Pass
• Load Wear Index (ASTM D2596): 34.43
• Adhesive% (Sec. 4.6.6. 150 rpm @ 151 +/-2 deg. F): 99.7
• Volatile Matter (2.0% Max): 1.02
• 4-Weld, kg.: 250
• 4-Ball Wear Diameter, mm, max.: 0.65
